NovaCompass Drill Rig Alignment System

Name: NovaCompass Drill Rig Alignment System
Brand: Align Engineering
Availability: InStock

Align your drill rig in under 5 minutes. Our gyrocompass technology delivers drift-free azimuth for precise rig alignment at a fraction of the cost of traditional systems.

Drift-free azimuth technology

Advanced dead-reckoning capabilities

Maintains accuracy without recalibration

Cost-effective solution

Rugged design for harsh environments

Buy Now Download NovaCompass Technical Specs PDF

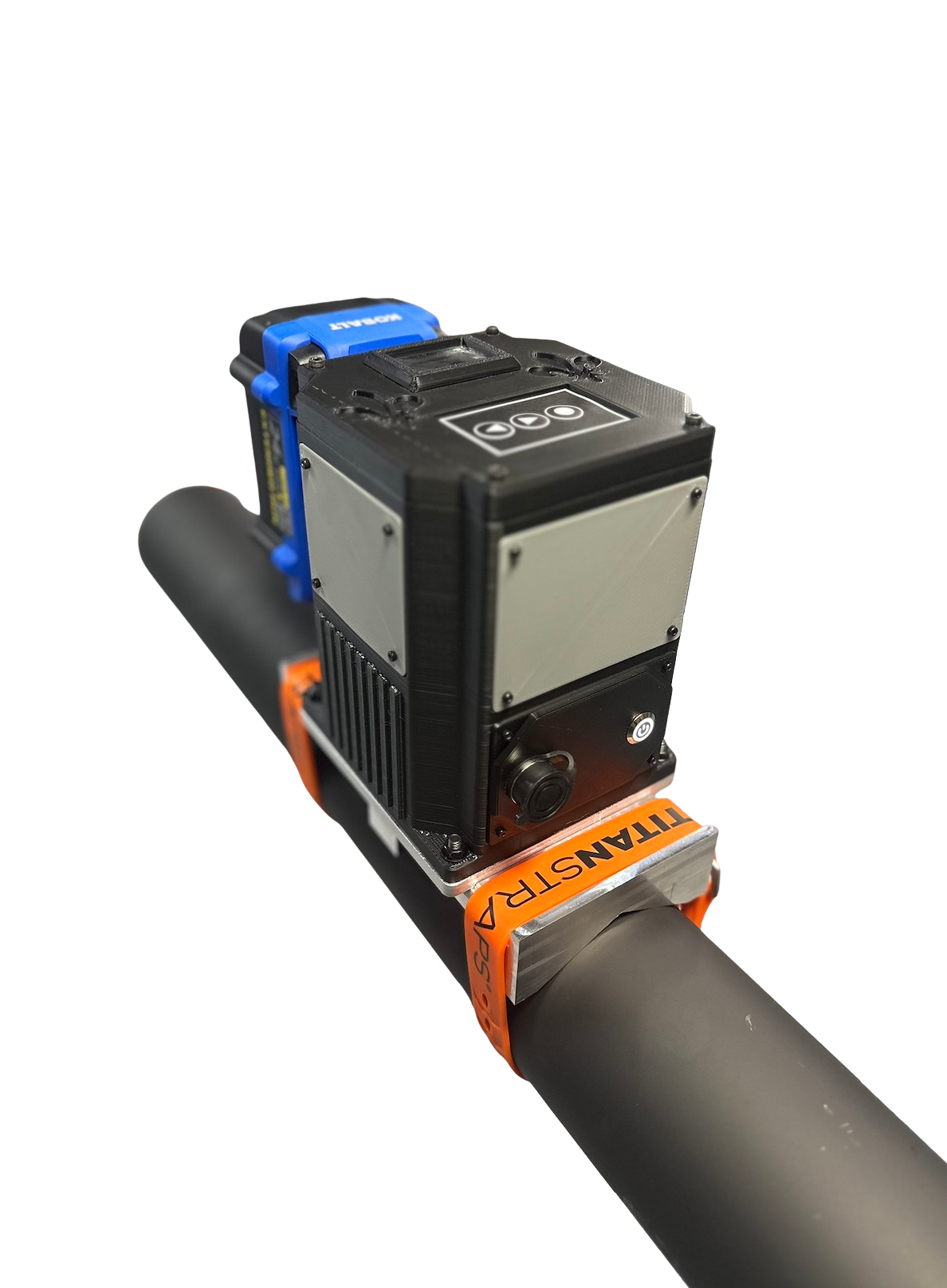

NovaCompass gyrocompass for mining rig alignment

About The NovaCompass Drill Rig Alignment System

The NovaCompass is our flagship gyrocompassing platform designed for precision alignment in mining and drilling operations. It combines advanced dead-reckoning technology with drift-free azimuth capabilities to deliver exceptional accuracy even in challenging environments.

Designed to operate independently of GPS and magnetic references, the NovaCompass provides reliable heading information in all environments, including underground operations where traditional navigation systems fail.

Key Applications

Drilling rig alignment
Borehole trajectory planning
Mine shaft alignment
Tunnel boring guidance

Benefits

Increased drilling accuracy
Reduced operational costs
Works without GPS/magnetic references
Minimizes setup and calibration time

Why Gyrocompassing?

When GPS signals are blocked and magnetic compasses fail, gyrocompassing technology continues to provide reliable navigation.

Gyrocompassing works by detecting Earth's rotation, providing accurate heading information in challenging environments such as underground mines, tunnels, and deep caves where traditional navigation methods are unreliable.

At Align Engineering, our gyrocompassing solutions deliver precision navigation in the most demanding conditions, ensuring your operations continue uninterrupted even where other technologies fail.

Technical Specifications

Specification	Value
Azimuth Accuracy	±0.197° seclat RMS typical
Alignment Time	< 5 minutes
Operating Temperature	-20°C to +55°C
Dimensions	170 x 115 x 157 mm
Weight	2kg
IP Rating	IP65
Battery Life	12+ hours continuous operation

Download Technical Specifications

Magnet Mount Accessory

Quickly attach and detach the NovaCompass from any ferrous surface with our powerful magnet mount. Designed for rapid deployment in the field, the magnet mount ensures secure positioning while allowing easy repositioning between drill rigs.

Strong neodymium magnets for secure attachment
Quick-release mechanism for fast repositioning
Rugged construction for harsh environments

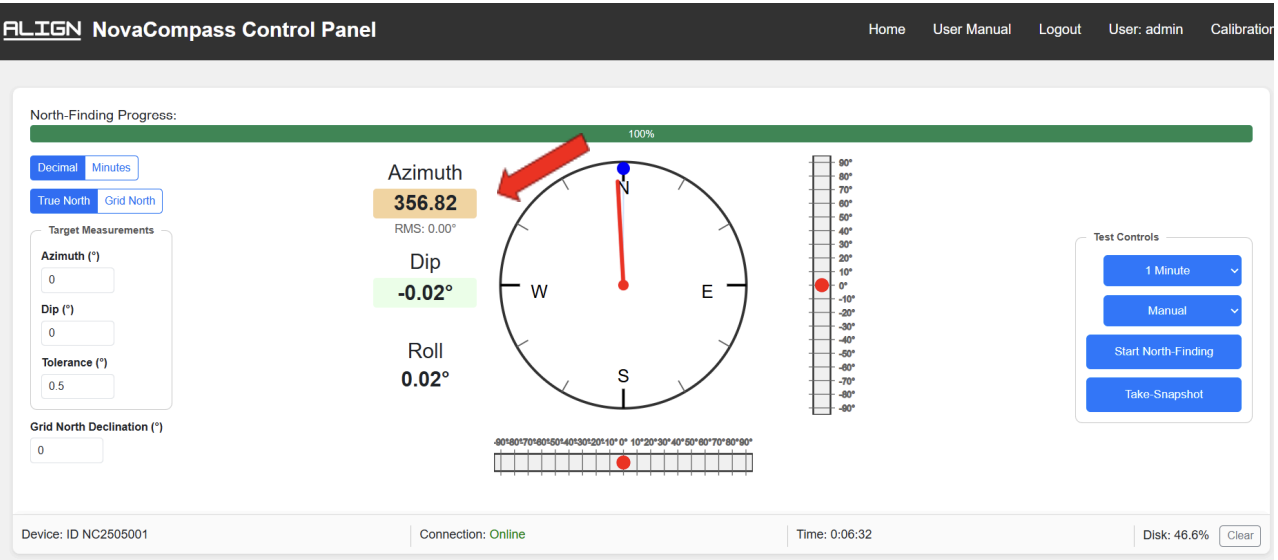

NovaCompass Web App

Monitor and control your NovaCompass from any device with our intuitive web application. View real-time heading data, configure settings, and export alignment reports — all from your browser.

Real-time heading and alignment data
Works on any device with a web browser
Export alignment reports for documentation
Configure device settings remotely

Benefits for Mining Operations

Increased Productivity

Reduce rig setup time by up to 70% with our quick alignment technology, allowing more operational time and higher productivity.

Enhanced Reliability

Our drift-free technology maintains accuracy without external reference signals, ensuring reliable operation in underground and GPS-denied environments.

Cost Savings

Achieve the precision of traditional FOG and RLG gyrocompasses at a fraction of the cost, with lower maintenance requirements.

Accelerate mineral discovery

Fast, accurate directional headings mean less time waiting and more time drilling. Minimize downtime, maximize productivity, and accelerate your path to mineral discovery.
